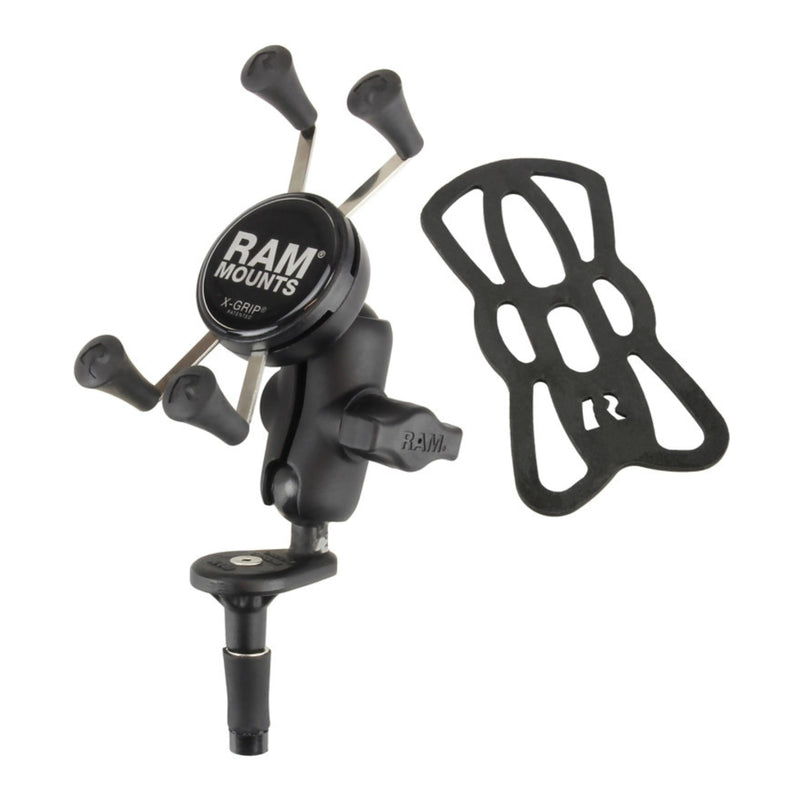

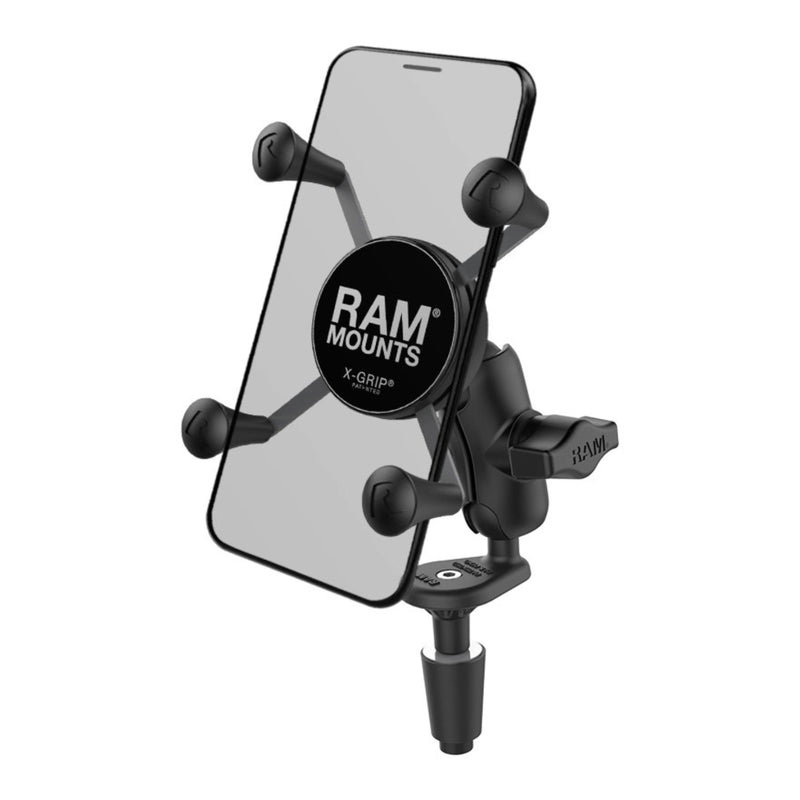

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN7U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM® X-Grip® phone holder. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.87" to 3.25" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allow for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
Features:
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Specifications:
- CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
- HOLDER DIMENSIONS: Width Range: 1.875" (47.6mm) - 3.25" (82.5mm), Depth Range: 0.875" (22.2mm) max
- SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
- BALL SIZE: B Size (1", 25.4mm)
Assembly Hardware Included:
- x1 Optional Tether
- x1 Glue Tube for Rubber Caps
- x1 Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
- x1 M5 x 60mm Machine Screw
- x1 Steel Washer Set
- x1 Nut Pocket Washer Set
- x1 Brass Nylock Nut
